Vixen AP-ED80Sf-SM Telescope Set
by Vixen
SKU ES39982-SO
Special Order
Original price
$ 2,852.99
-
Original price
$ 2,852.99
Original price
$ 2,852.99
$ 2,852.99
-
$ 2,852.99
Current price
$ 2,852.99
Features
- Complete telescope set with tripod, mount and telescope
- High-quality ED refractor with 80 mm lenses
- Collapsible travel mount with RA motor and control
- Lightweight and portable
- Very high sharpness and contrast
- Mount can be upgraded with DC motor
- High sharpness and contrast Upgradable motor set
- Total weight: 14.6 kg
Description
AP-series telescope set with 80 mm refractor and high-performance SD glass for the lens. The set comes with an exclusive travel bag for transporting and storing the optical lens barrel.
STYLISH DESIGN
The AP mount features an ultra-smooth finish without any projecting parts.
Simply place your telescope on the mount and move it to the desired celestial object without having to loosen any clamps!
QUICK POLAR ALIGNMENT
The slip clutches allow you to adjust the telescope to your target object easily - no more searching for adjustment clamps in the dark! An optional polar meter is available, which enables you to locate the celestial pole when it is hidden by trees or buildings.
OPTIONAL POLAR FINDER SCOPE
The innovative polar finder scope provides a new way to polar align your telescope. Simply align the stars in the crosshair reticle with the same stars in the night sky. Polar alignment is achieved using 3 reference stars. The polar finder is illuminated to facilitate orientation and switches off automatically after 3 minutes to save battery power.

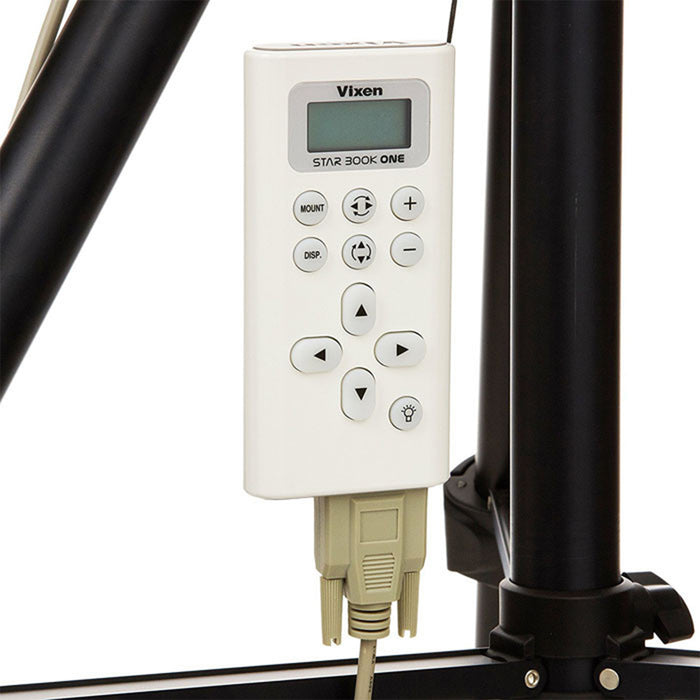

STAR BOOK ONE CONTROLLER
The STAR BOOK ONE is a multifunctional and intuitive controller that tracks in the RA and DC axis with a range of different speeds. The tracking options are designed for time-lapse cameras at a wide range of speeds, including sidereal, lunar and solar rates. The controller also offers many useful functions such as backlash compensation, autoguider port, PEC and a built-in red LED light. The STAR BOOK ONE controller is designed for the AP-SM mount and is an integral part of the RA motor module.
APP-TL130 tripod
STYLISH DESIGN
The AP mount features an ultra-smooth finish without any projecting parts.
Simply place your telescope on the mount and move it to the desired celestial object without having to loosen any clamps!
QUICK POLAR ALIGNMENT
The slip clutches allow you to adjust the telescope to your target object easily - no more searching for adjustment clamps in the dark! An optional polar meter is available, which enables you to locate the celestial pole when it is hidden by trees or buildings.
OPTIONAL POLAR FINDER SCOPE
The innovative polar finder scope provides a new way to polar align your telescope. Simply align the stars in the crosshair reticle with the same stars in the night sky. Polar alignment is achieved using 3 reference stars. The polar finder is illuminated to facilitate orientation and switches off automatically after 3 minutes to save battery power.
STAR BOOK ONE CONTROLLER
The STAR BOOK ONE is a multifunctional and intuitive controller that tracks in the RA and DC axis with a range of different speeds. The tracking options are designed for time-lapse cameras at a wide range of speeds, including sidereal, lunar and solar rates. The controller also offers many useful functions such as backlash compensation, autoguider port, PEC and a built-in red LED light. The STAR BOOK ONE controller is designed for the AP-SM mount and is an integral part of the RA motor module.
APP-TL130 tripod
The compact APP-TL130 tripod is adjustable between 60 cm and 130 cm and combines the portability of a camera tripod with the strength of an astronomical telescope tripod. The tripod can be switched between rubber and metal spikes to prevent floor damage in indoor spaces
What's Included
- ED80Sf ED refractor telescope
- AP-SM mount with control/RA motor
- APP TL 130 tripod
- Folding mirror
- 9x50 mm finderscope
- Tube clamps
- Dovetail adapter

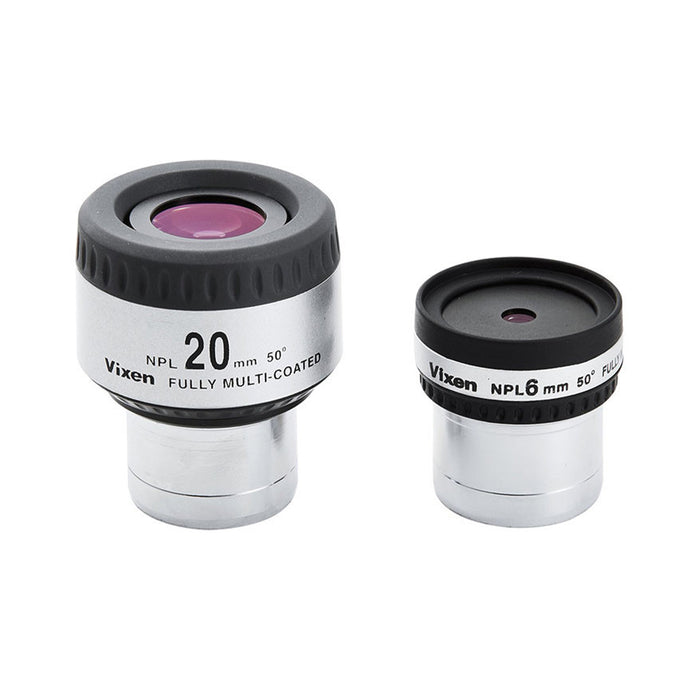

- 2 eyepieces: NPL20, NPL6
- Aluminum case
Specs
| Optical design | Apochomatic Refractor |
| Focal length | 600mm (F7.5) |
| Resolution and limiting magnitude | 1.43 arc seconds; 11.3 |
| Light-gathering power | 134x |
| Type of coating | ED 2-lens apochromat, multi-coated |
| Polar viewfinder telescope | 9x50 mm finder scope |
| Maximum load capacity | 6 kg |
| Mount Type | German/Equatorial Mount |
| Material tripod | Aluminium |
Warranty
Vixen warranties its products to be free from initial defects in materials and workmanship for a specified period based on part type:
Vixen Electronic Parts: Limited One Year Warranty
Vixen Mechanical Parts: Limited Two Year Warranty
Manual
Coming soon
