Vixen ASG-CB90 Carbon Tripod without Mount

by Vixen
SKU ES25164
BARCODE 4955295251643
Original price $ 549.99 - Original price $ 549.99
Original price
$ 549.99
$ 549.99 - $ 549.99
Current price $ 549.99

All pricing in USD


  • 2-section carbon tripod
  • Lightweight and portable
  • Stable design with minimal vibrations
  • For GP2, GPD, SX and AXJ mounts
  • Dimensions: 545 mm to 900 mm length

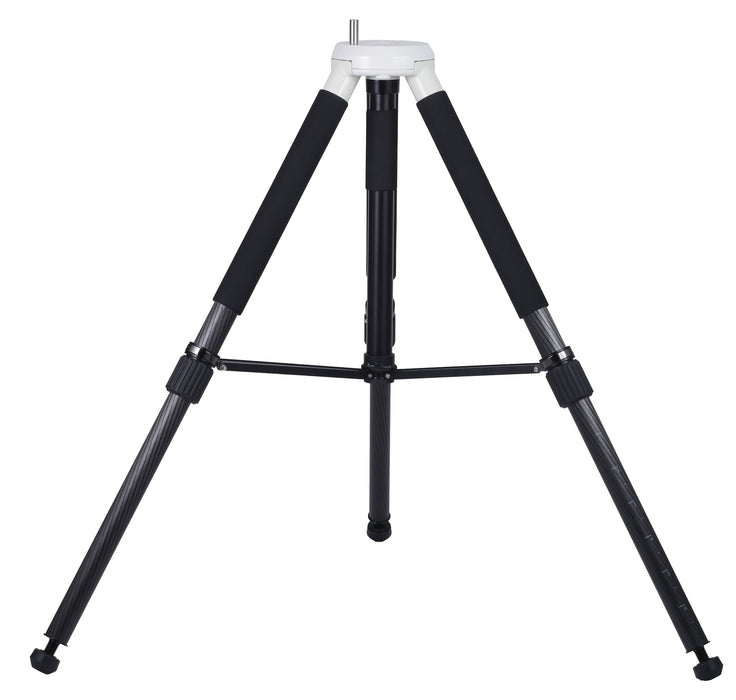

Despite being developed for heavy mounts, the Vixen ASG CB90 carbon tripod is one of the lightest tripods on the market.

The ASG CB90 tripod was originally designed for the new AXJ mount. However, it is also ideally suited to the tried-and-tested SX, HF2, AP, GPD2 and GP2 mounts. The hand nuts can be loosened to extend the tripod by one section.

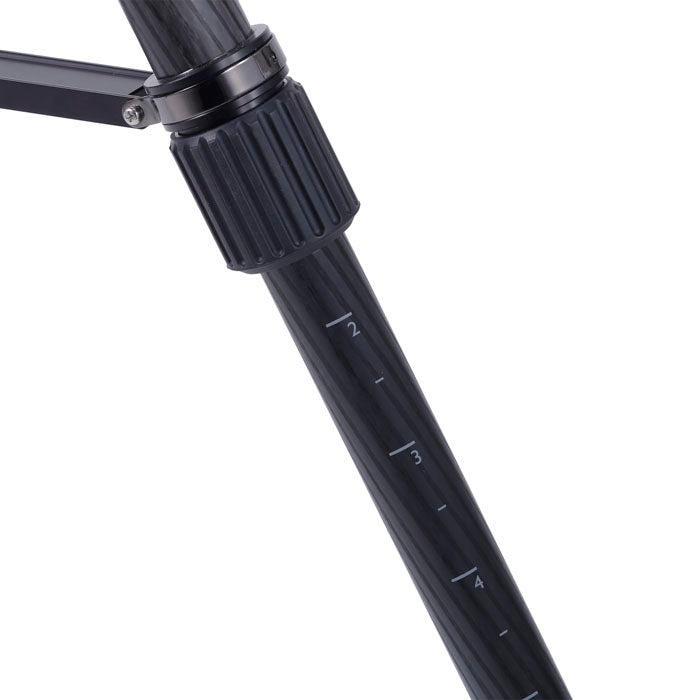

The legs of the ASG CB90 tripod can be secured by a reliable screw cap and are equipped with a 2.5 cm interval scale marking.


Leg type, material Two-section carbon fiber legs (extendable by one touch)
Adjustable length from 545mm to 900mm
Adjustable height from 510mm to 815mm
Pipe leg diameter Upper section: 36mm, Lower section: 32mm
Setup space from 340mm to 520mm in radius


Vixen warranties its products to be free from initial defects in materials and workmanship for a specified period based on part type:

Vixen Electronic Parts: Limited One Year Warranty

Vixen Mechanical Parts: Limited Two Year Warranty
