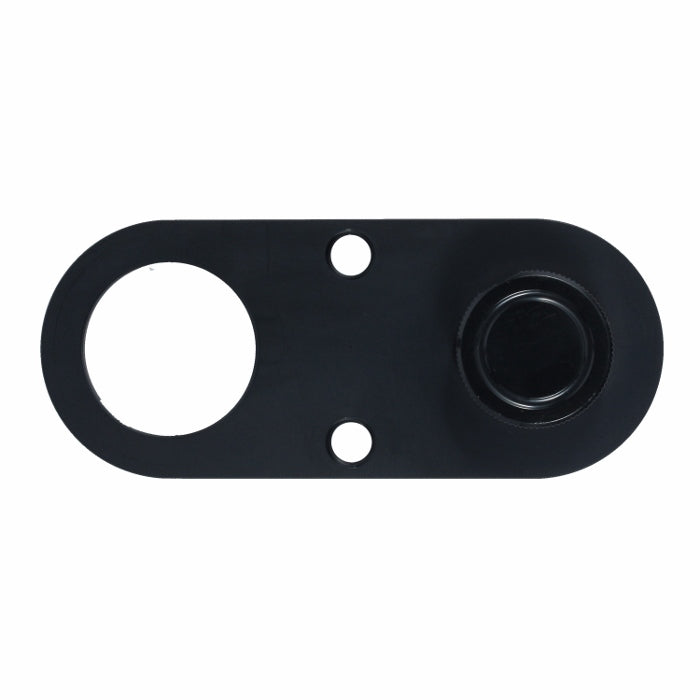

Vixen PF-L II Attachment Bracket
All pricing in USD
It allows you to use an polar alignment scope PF-LII, polar alignment scope PF-L or SX polar axis scope for the POLARIE U.

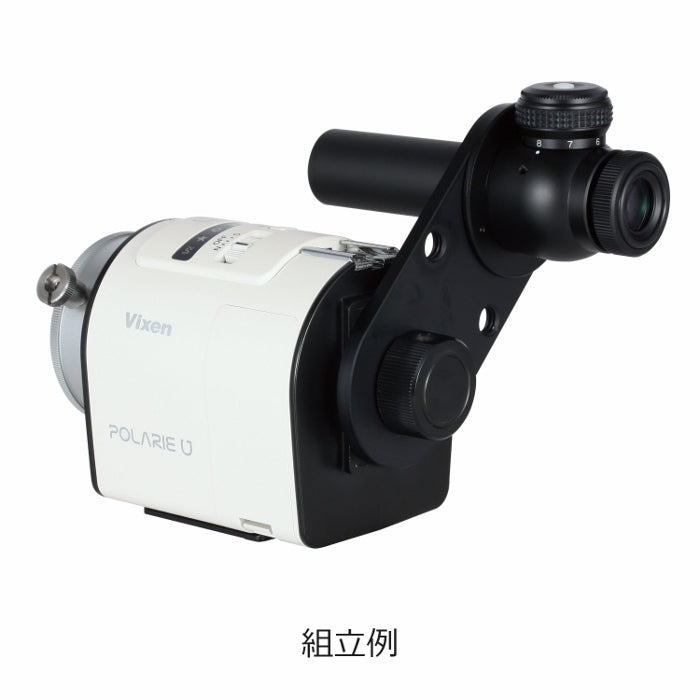

The polar scope arm bracket can be attached to the 3/8-inch socket on the bottom (rear) of the POLARIE U after unscrewing the 1/4" to 3/8" conversion socket screw. If this is the case, the removed conversion socket screw can be stored by screwing into the 3/8" holes on the arm bracket to avoid losing.
|Attachment thread||34mm in diameter and pitch 0.75mm|
|Screw holes||3/8-inch hole x 2|
|Usable with||Polar alignment scope PF-LII, Polar alignment scope PF-L, SX polar axis scope|
|Dimensions||120 x 50 x 5mm|
|Weight||74 g / 2.64 oz.|
Vixen warranties its products to be free from initial defects in materials and workmanship for a specified period based on part type:
Vixen Electronic Parts: Limited One Year Warranty
Vixen Mechanical Parts: Limited Two Year Warranty
